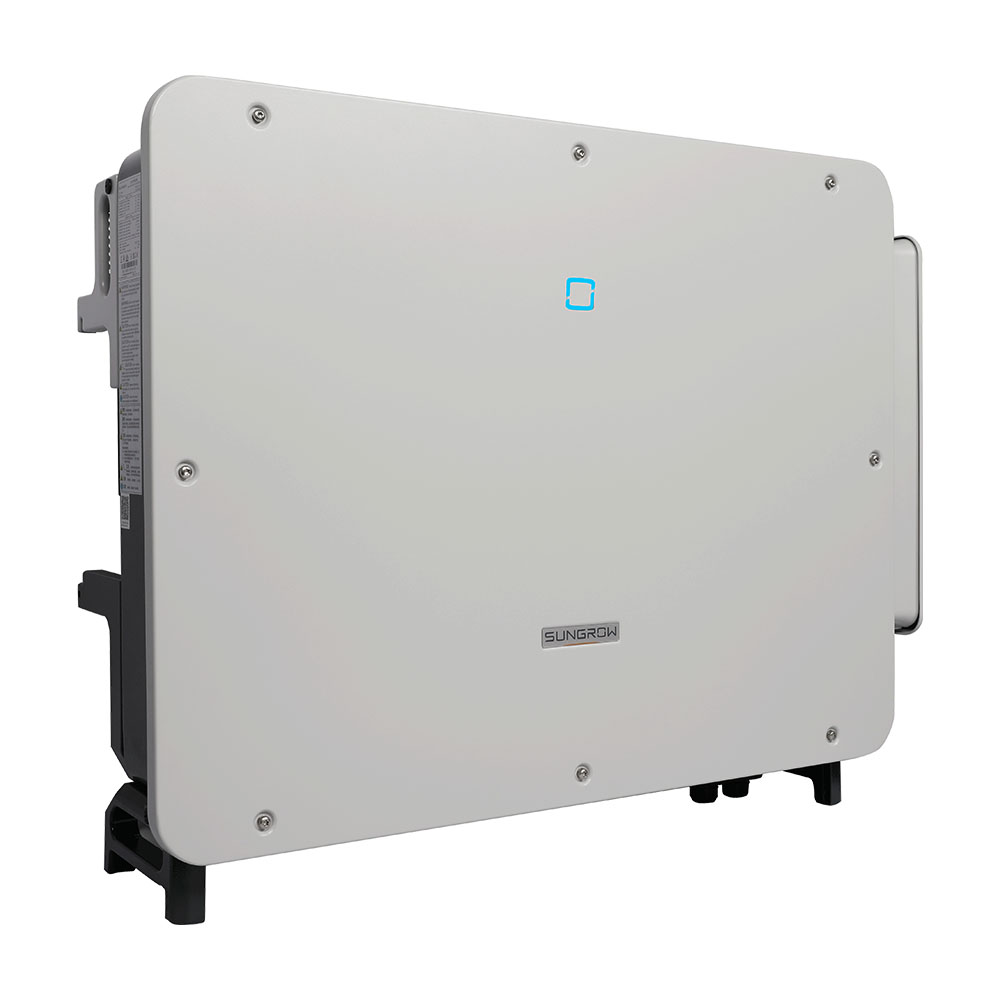

Sungrow 150kW SG150CX-V12 String Inverter (A0SG0179)
The Sungrow SG150CX is a powerful on-grid inverter designed for commercial and industrial (C&I) applications. It features up to 7 MPPTs to maximise energy yield across different panel orientations and shading conditions, delivering high efficiency and stable 3-phase output.
Advanced technologies such as Smart IV Curve Diagnosis, AFCI 3.0 arc-fault protection, integrated surge protection, and intelligent air-cooling enhance safety and reliability. With remote monitoring capabilities and robust IP66 protection, this transformerless inverter ensures dependable performance in demanding environments.
KEY FEATURES:
- 150 kW three-phase on-grid string inverter
- Recommended maximum PV input power of 210kWp
- Up to 7 MPPTs for maximum energy harvest
- High efficiency (up to 98.8%)
- AFCI 3.0 intelligent DC arc-fault protection
- High-precision string monitoring and I–V diagnosis
- DC Type I+II and AC Type II surge protection
- Intelligent string-level fault disconnection
- Smart forced-air cooling with air-duct self-cleaning
- IP66-rated enclosure and C5 corrosion protection
- RS485 communication with optional WLAN and Ethernet
- 5-year warranty
| Grid Connection Standards (G98/G99/G100) | G100-2 , G99 |
| Inverter Power Range (kW) | 75.1kW - 150kW |
| Inverter Phase | 3 |
| Brand | Sungrow |
| Rated Power (W) | 150000 |
| Max DC Power (W) | 210000 |
| Total No. of Strings | 21 |
| No. of MPP Trackers | 7 |
| MPPT Voltage Range / Rated Input Voltage (V) | 180-1000 / 600 |
| Start-up Input Voltage (V) | 200 |
| Max. Input Voltage (V) | 1100 |
| Max. input current per MPPT | 48A |
| European Efficiency (%) | 98.2 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 360 |
| Height (mm) | 1025 |
| Width (mm) | 795 |
| Warranty Period | 5 Years |
| Product Weight (Kg) | 100 |
