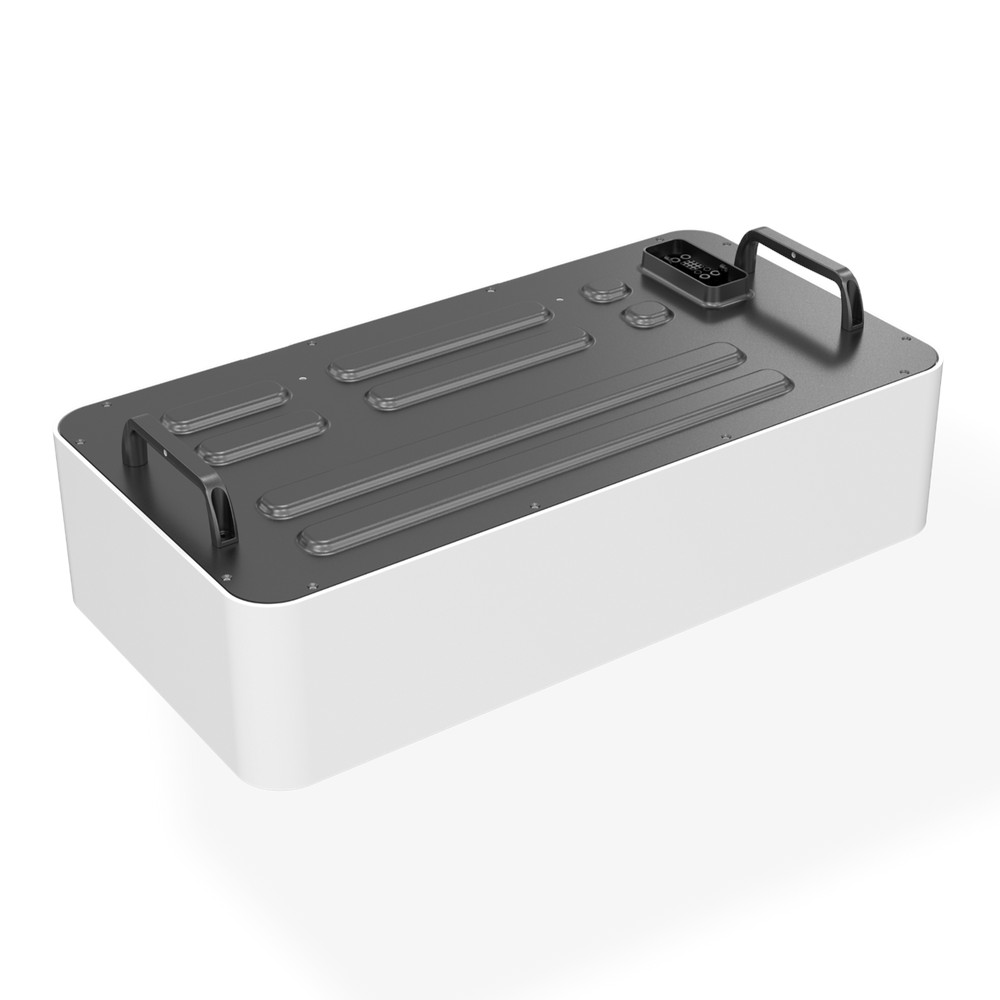

Sungrow SBH 5.0kWh Battery Module
The Sungrow SBH SMR050 is a 5 kWh high-voltage battery module designed for fast, safe, and scalable energy storage. It is the core building block in the SBH stackable battery system, ideal for UK installers delivering residential and light C&I projects that require dependable performance, clean aesthetics, and straightforward commissioning.
Seamlessly integrated with Sungrow SHT Series (15–25 kW) three-phase hybrid inverters, the SBH platform supports self-consumption, time-of-use optimisation, backup power, and grid services, with advanced battery management and safety systems engineered for long service life and robust performance.

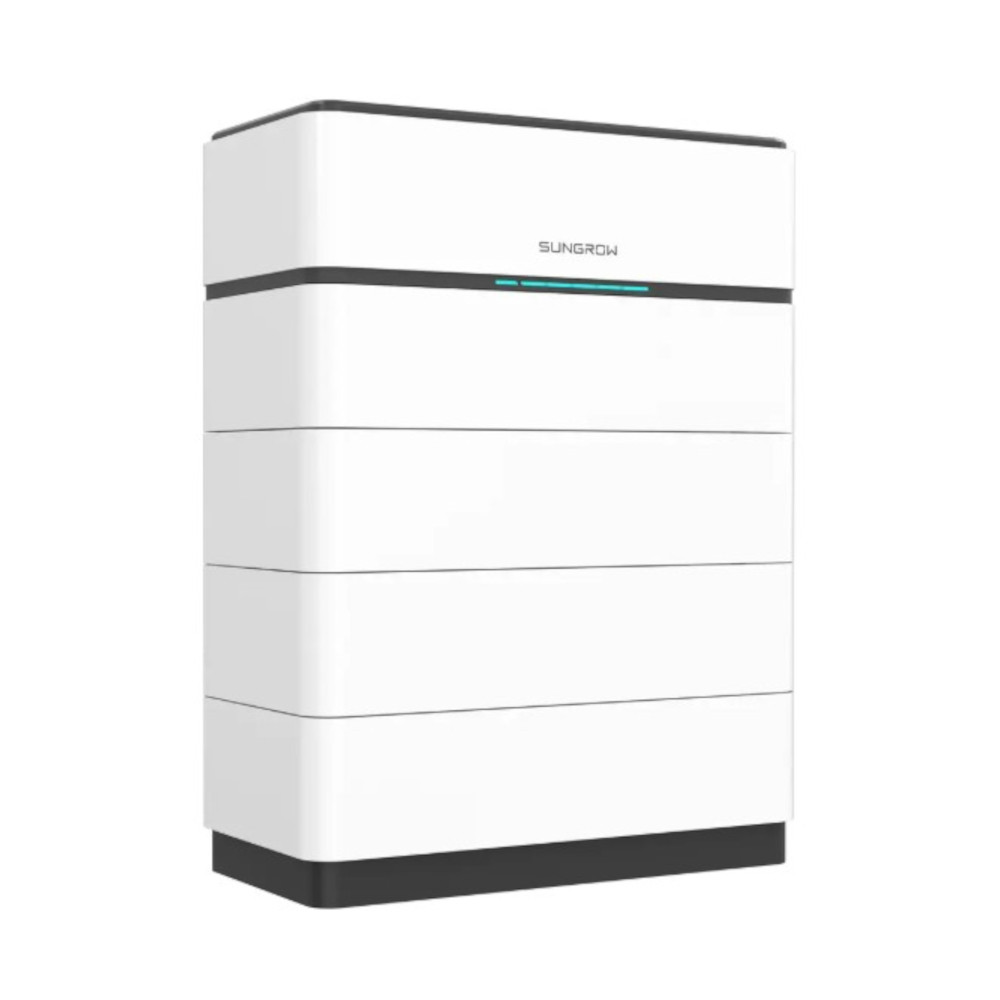

Why Choose the Sungrow SBH Battery System

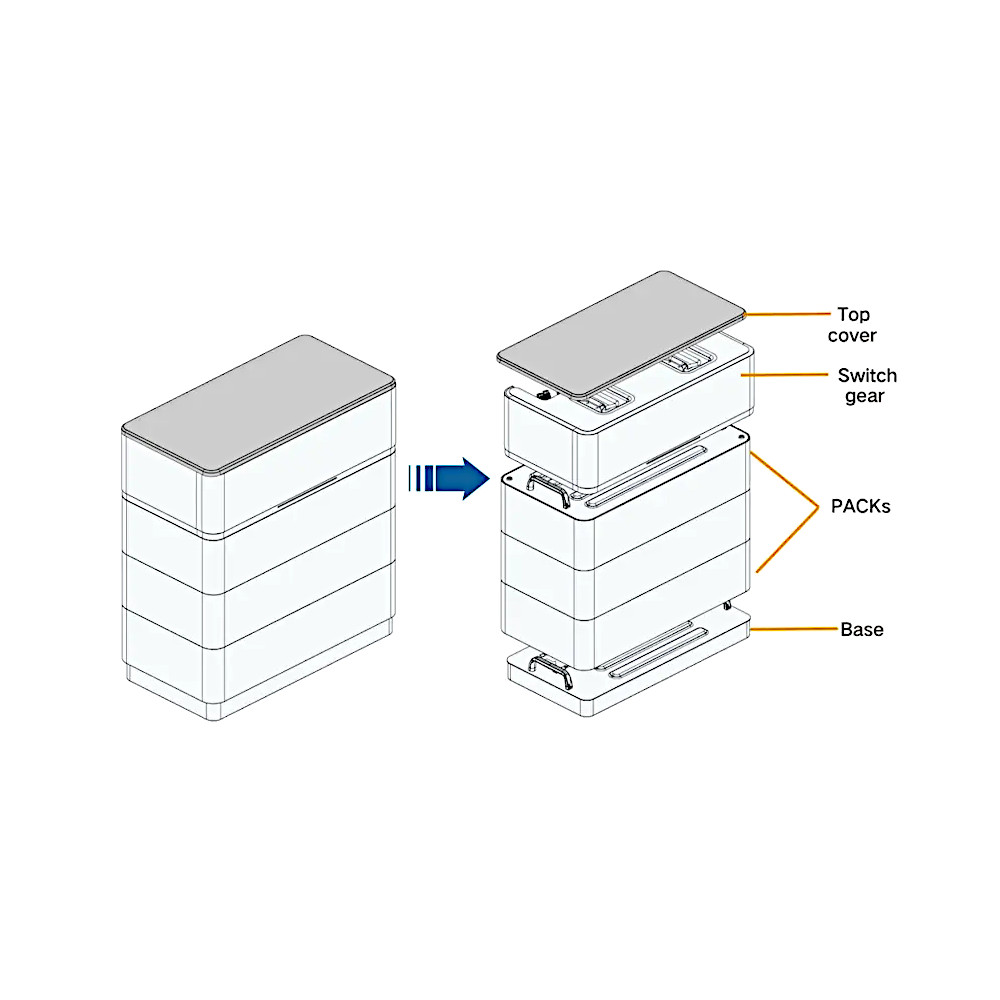

- Quick, clean installation: Plug-and-play stack with no inter-module cabling; integrated BMS and simple addressing for fast commissioning.
- Flexibility: The system uses modular 5 kWh blocks with a slimline design; runs from 2–8 modules (10–40 kWh) with no redesign.
- Multi Stack: Up to 2 stacks or 80kWh per inverter.
- Expandable: Up to 8 inverters per system, giving a battery capacity of up to 640kWh.
- High-voltage architecture: Up to 50 A continuous; 8-module stack ≈ 28 kW DC (actual AC capped by inverter); up to 100% usable energy (configurable reserve SoC).
- Safety and reliability: LFP chemistry, multi-level BMS, certified protection (incl. VDE 2510-50), robust serviceable enclosure; stable performance and strong backup protection.
- Sungrow ecosystem: Seamless hybrid-inverter compatibility, auto recognition, iSolarCloud monitoring, and EPS <10 ms switchover (inverter/firmware dependent); strong UK support.
Technical specifications:
- Energy Capacity (Nominal): 5.0 kWh
- Nominal Voltage: 70.4 V
- Capacity range (per stack): 10-40 kWh
- Continuous charging and discharging current: Up to 50 A
- Safety Features: over-voltage/under-voltage protection; over-temperature protection; short-circuit and overcurrent protection
- Certifications: CE, UN38.3, IEC 62619, VDE 2510-50
- Enclosure Rating: IP55 (for outdoor/indoor use when fully installed)
- Installation: Floor-mounted on compatible base/switchgear (sold separately)
- Dimensions (W × D × H): 675 x 350 x 160 mm
- Inverter Compatibility: Sungrow SHT series (15-25 kW) three-phase hybrid inverters
- Monitoring: Via Sungrow inverter + iSolarCloud app
- 10-year product warranty
Sungrow SBH Battery Installation (Duration 4:45)
| Brand | Sungrow |
| Battery End User | Residential/Small Commercial |
| High / Low Voltage Battery | High Voltage |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 5.0 |
| Depth Of Discharge (%) | up to 100 |
| Battery Usable Capacity (kWh) | 5.0 |
| Protection Rating (IP) | Suitable for Outdoors |
| Grid Connection | Grid and Off Grid Capable |
| Battery / System Model | Sungrow SBH HV |
| Dimensions (W x H x D) mm | 675 x 160 x 350 |
