IMO Solar Isolators

IMO range of TRUE DC solar isolators have become the safety component of choice for many of the largest solar inverter manufacturers and installers around the world.

Read more about DC isolators ➜

Sort By : Name (A-Z)
[IMO - SI16-PEL64R-2] IMO 16A DC Isolator - 2 Pole (Single String) IP66 Enclosed, 800 VDC 42 In Stock
IMO 16A DC Isolator - 2 Pole (Single String) IP66 Enclosed, 800 VDC
Login | Register to see price

IMO | Alternergy

IMO 16A DC Isolator - 2 Pole (Single string) IP66 Enclosed, 800 VDC


FEATURES:

  • 2 Pole (1 string)
  • 16A 800 VDC
  • IP66 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):180x98x107


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[IMO - SI16-PEL64R-4] IMO 16A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 800 VDC 210 In Stock
IMO 16A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 800 VDC
Login | Register to see price

IMO | Alternergy

IMO 16A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 800 VDC


FEATURES:

  • 4 Pole (2 string)
  • 16A 800VDC
  • IP66 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):180x98x107


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart

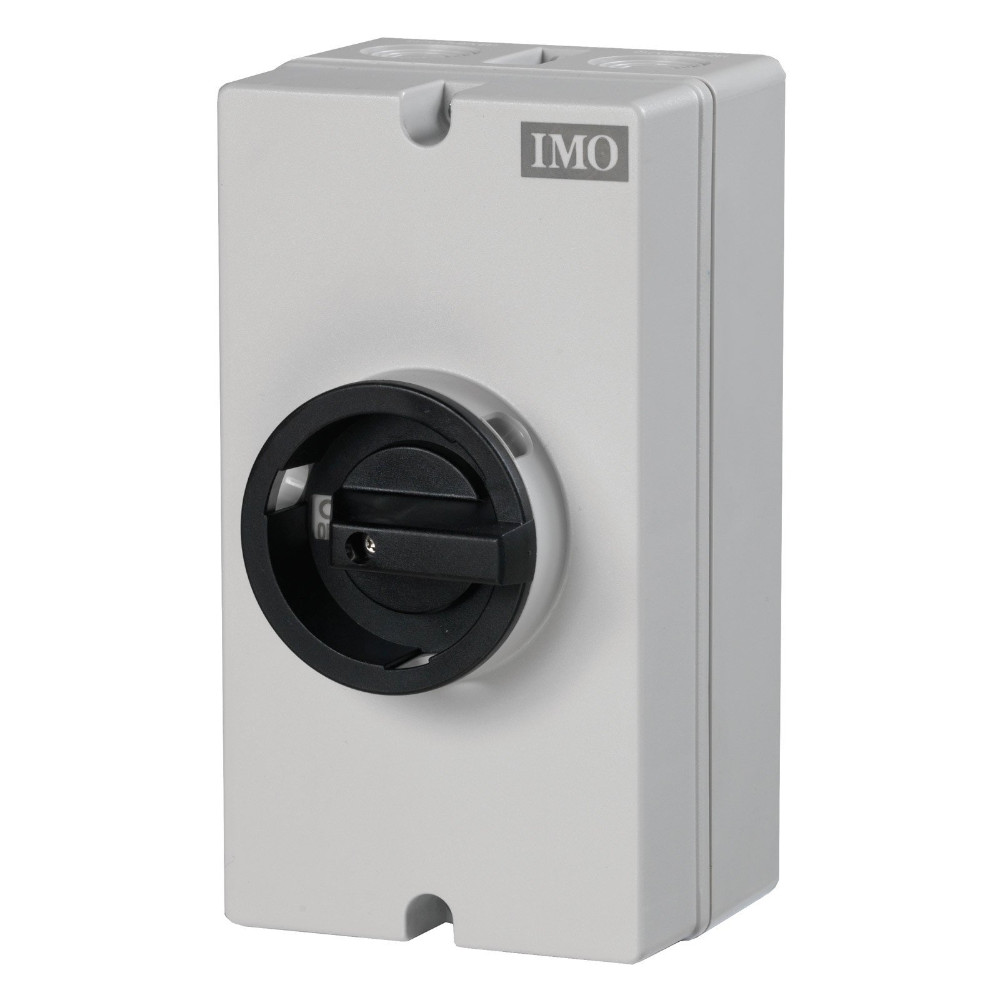

[IMO - SI25-PEL64R-2] IMO 25A DC Isolator - 2 Pole (Single String) IP66 Enclosed, 600 VDC 94 In Stock
IMO 25A DC Isolator - 2 Pole (Single String) IP66 Enclosed, 600 VDC
Login | Register to see price

IMO | Alternergy

IMO 25A DC Isolator - 2 Pole (Single String) IP66 Enclosed, 600 VDC


FEATURES:

  • 2 Pole (1 string)
  • 25A 600VDC
  • IP66 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):180x98x107


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[IMO - SI25-PEL64R-4] IMO 25A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC 395 In Stock
IMO 25A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC
Login | Register to see price

IMO | Alternergy

IMO 16A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC


FEATURES:

  • 4 Pole (2 string)
  • 25A 600VDC
  • IP66 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):180x98x107


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[IMO - SI32-PEL64R-4] IMO 32A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC 30 In Stock
IMO 32A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC
Login | Register to see price

IMO | Alternergy

IMO 32A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC


FEATURES:

  • 4 Pole (2 strings)
  • 32A 600 VDC
  • IP66 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):180x98x107


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[IMO - SI40-PEL64R-4] IMO 40A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC 2 In Stock
IMO 40A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC
Login | Register to see price

IMO | Alternergy

IMO 40A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC


FEATURES:

  • 4 Pole (2 strings)
  • 40A 600 VDC
  • IP66 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):180x98x107


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[SI40-PEL64R-8] IMO 48A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 600 VDC Check Availability
IMO 48A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 600 VDC
Login | Register to see price

IMO | Alternergy

IMO 48A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 600 VDC


FEATURES:

  • 8 Pole (4 string)
  • 48A 600 VDC
  • IP67 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):240x176x156


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[SI55-PEL64R-8-4S2] IMO 55A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 800 VDC, Special Handle Check Availability
IMO 55A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 800 VDC, Special Handle
Login | Register to see price

IMO | Alternergy

IMO 55A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 800 VDC, Special Handle


FEATURES:

  • 8 Pole (4 string)
  • 55A 800 VDC
  • IP67 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):240x176x156


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[IMO - SI65-PEL64R-4] IMO 65A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC 2 In Stock
IMO 65A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC
Login | Register to see price

IMO | Alternergy

IMO 65A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 600 VDC


FEATURES:

  • 4 Pole (2 string)
  • 65A 600 VDC
  • IP66 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):240x176x156


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
[SI65-PEL64R-8] IMO 76A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 700 VDC Check Availability
IMO 76A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 700 VDC
Login | Register to see price

IMO | Alternergy

IMO 76A DC Isolator Nema 4X - 8 Pole (Four Strings) IP67 Enclosed, 700 VDC


FEATURES:

  • 8 Pole (4 string)
  • 76A 700 VDC
  • IP67 Enclosure
  • Grey Body with Black switch
  • Switching times of less than 5ms
  • IMO patented "Safelock" function
  • Dimensions (mm):240x176x156


IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Add to Cart
Showing 10 of 10 results
